Orion US successfully conducted an AP on the Stick site survey across various areas including the Warehouse, Nutrient Storage Area, Powder Plant Area, and Main Plant Area. Utilizing top-of-the-line equipment such as the Cisco AP 9120 AXE and Cisco Aironet Dipole Antenna, we also completed an Outdoor wireless site survey using the Cisco 5162 Outdoor rated AP and Cisco AIR‑ANT2547V‑N Omni Directional Antenna. In response to our client's request, we opted for the AirMagment Site Survey Pro tool instead of our usual Ekahau Site Survey approach.
The details of the surveys are below.
Site type: Warehouse / Plants / Outdoors Area
Area: 308500 sq ft
Height: 18 ft
Survey type: Pre-Survey APoS
Coverage: 2.4 GHz and 5GHz
AP used for APoS: Cisco 9120 AXE and Cisco IW 6300 during the survey
Antenna: 4 X Cisco Aironet Dipole Antenna and Cisco AIR‑ANT2547V‑N Omni Directional Antenna
| 5 GHz | 2.4 GHz | |
| Signal Strength | -65 dBm | -65 dBm |
| Secondary signal strength | -75 dBm | -75 dBm |
| Signal-to-noise ratio | 25 dB | 25 dB |
| Data rate | 12 Mbps |
12 Mbps
|
Survey Path Tank Farm Outdoor Area
The image below shows that path Orion US RF Engineer walked during the outdoor AP on the Stick (APoS). A total of 4 Access Points (APs) were placed to cover the outdoor areas required by the client.
The image above shows that path 3sab RF Engineer walked during the outdoor AP on the Stick (APoS).

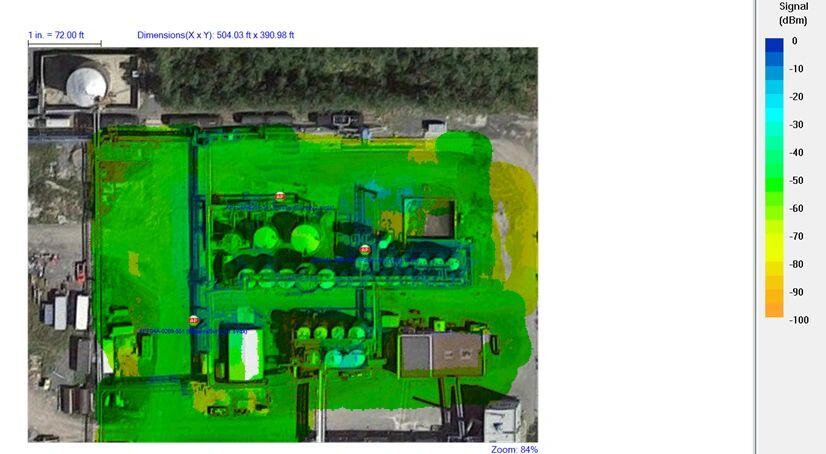

The image above shows the signal strength map of Tank Farm Outdoor Area for 2.4 GHz.
AP on the Stick (APoS) Picture
The below images shows the picture of APoS in the outdoor, warehouse, and in factory plant.

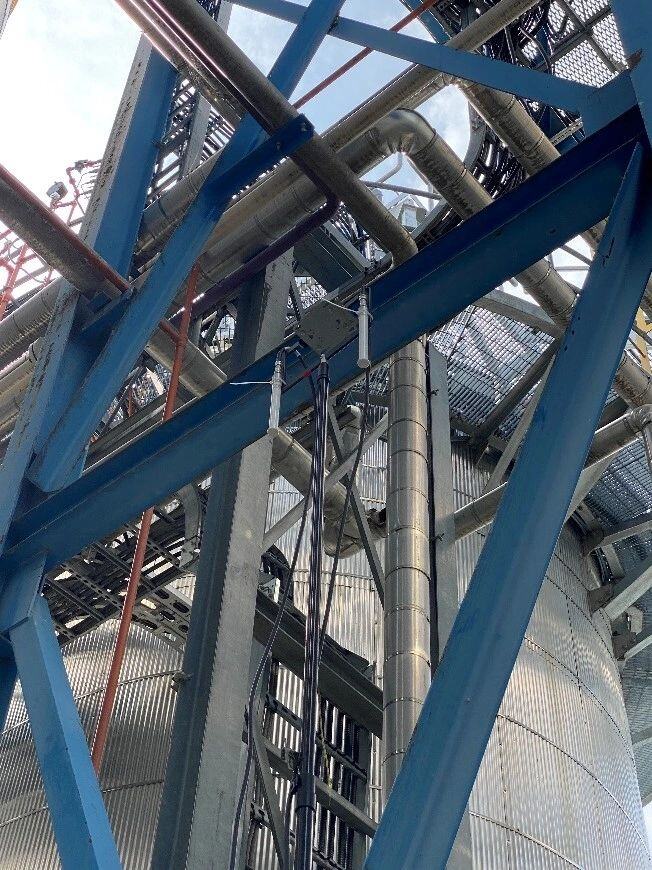

Image of the AP on the Stick in Tank Farm Outdoor Area onsite

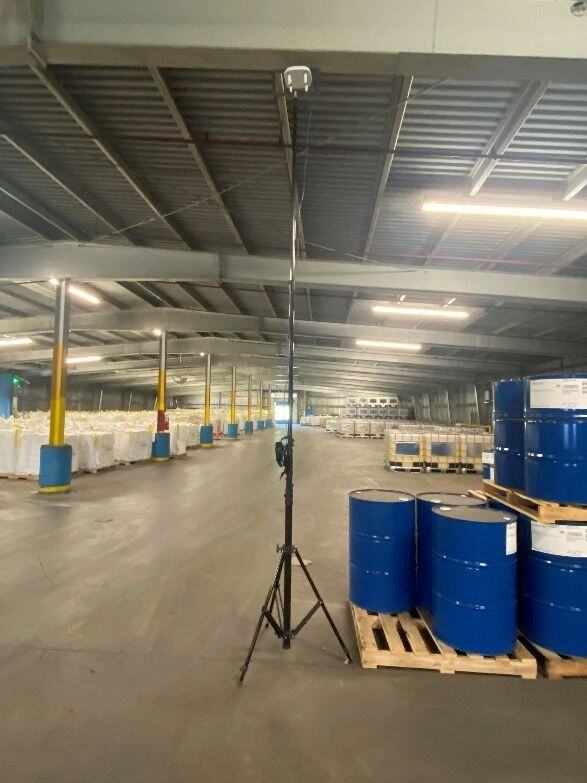

Image of the AP on the Stick in Warehouse

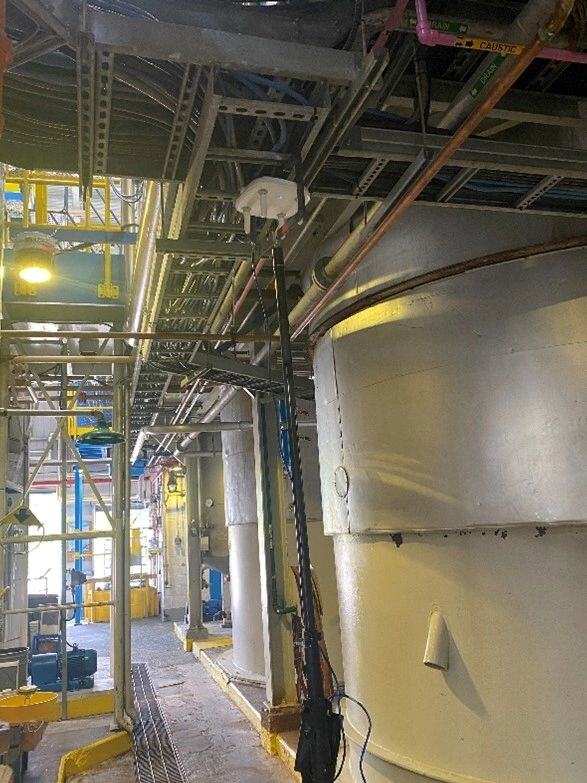

Image of the AP on the Stick in the Indoor factory plant onsite
