To support seamless wireless communication, we conducted a comprehensive pre-deployment site survey for a 95,000 sq. ft. property at Ohio, USA encompassing offices, warehouses, and production areas. This process ensured a future-ready wireless infrastructure tailored to meet operational demands.

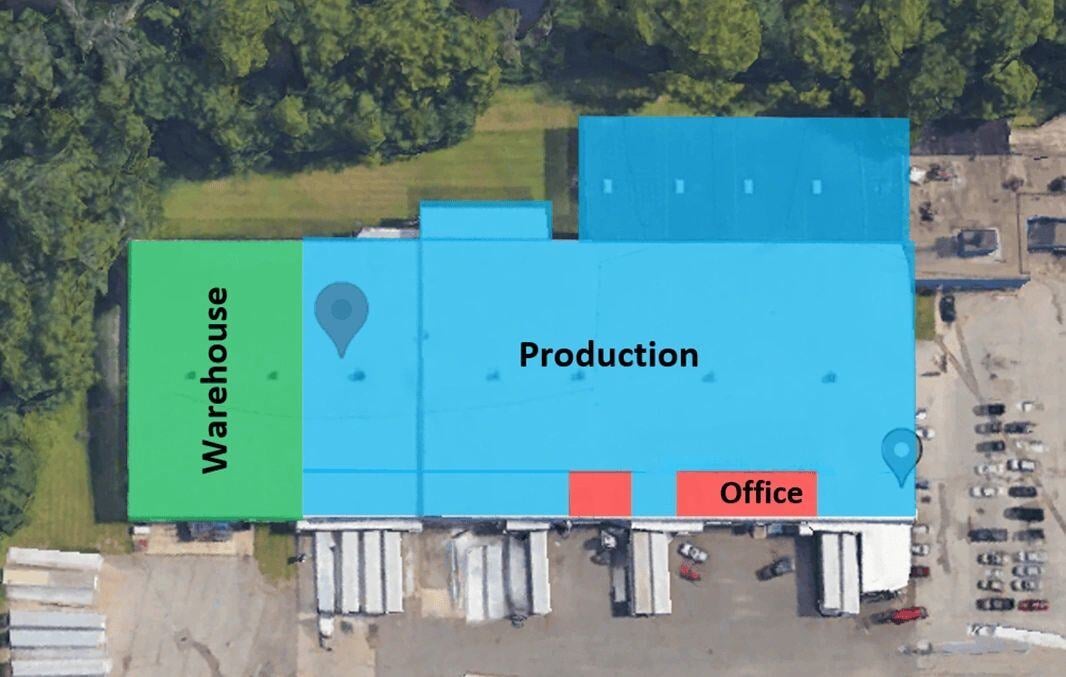

Site Map
Key Deliverables and Equipment
Using Cisco Meraki MR46 and MR76 access points (APs) with AccelTex antennas, we created a robust wireless setup. The survey was performed with Ekahau Pro, enabling precise RF data visualization through signal heatmaps on 2.4 GHz and 5 GHz bands.
Equipment Overview:
- AP Models: Cisco Meraki MR46 (indoors) and MR76 (warehouse/production).
- Antenna Solutions: AccelTex Omni and directional antennas for diverse needs.
- Transmit Power: Fixed at 11 dBm as per client standards.
Survey Insights:
- Continuous ping testing ensured device compatibility for handheld scanners and all client IT devices.
- Modeled AP placements optimized signal propagation across different environments.
Signal Strength on 5GHz
5GHz :

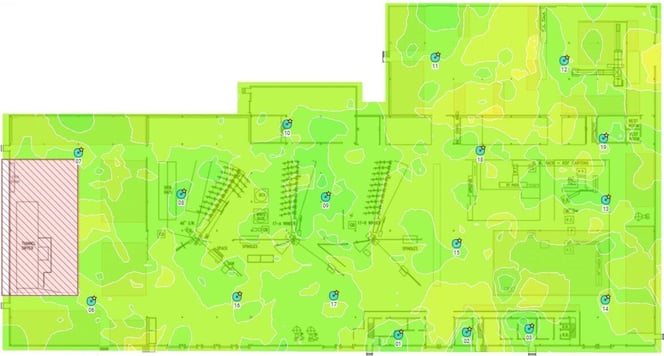

5GHz Signal Strength in Office Production and Warehouse
2.4GHz :

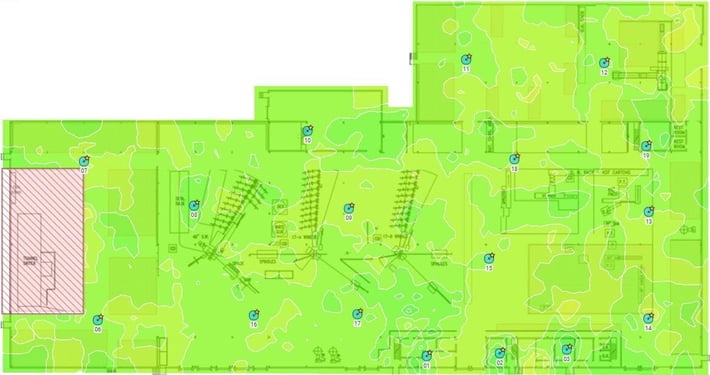

2.4GHz Signal Strength in Office Production and Warehouse
AP Placement :

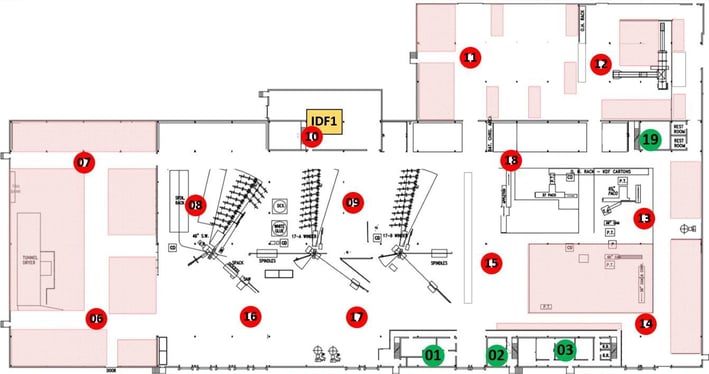

AP Placements
Findings
Signal Coverage Optimization:
- Comprehensive heatmaps indicated strong RSSI levels exceeding -65 dBm across the site. Strategic AP positioning reduced signal overlaps and dead zones.
Device Capacity and Density:
-
Design accounted for high-traffic areas like Conference rooms, production lines, and meeting spaces, ensuring smooth performance even during peak hours.
Enhanced Infrastructure:
- Upgraded to Category 6a cabling for efficient Power over Ethernet (PoE).
- Placement of APs maintained optimal distances to MDF/IDFs, minimizing latency.
Recommendations
To further enhance network efficiency we will conduct:
- Conduct periodic post-deployment reviews to confirm coverage.
- Evaluate PoE switch capacity for redundancy and scalability.
- Explore network segmentation to optimize guest and corporate traffic flows.
Our survey aimed to exceed expectations by designing a wireless network tailored to operational demands. This deployment guarantees seamless connectivity, ensuring productivity and satisfaction for all users.
