Following the client's request in Irvine, CA, USA, a post-wireless site survey was conducted. The client highlighted concerns regarding intermittent connect/disconnect and inadequate wireless coverage.
The site had Cisco's and Fortinet's internal APs installed. During the survey, the RF Engineer found inconsistent channel width and many Access points were extremely high in power. Issues with individual access points (APs) were identified and a detailed report was submitted to the client with a remediation strategy. RF Engineer also identified power level issues with some APs. Hence RF profile optimization was also recommended via Meraki Dashboard.
The details of the surveys are below:
Site type: 10 ft tall office area
Area: 56,159 sq ft
Height: 10 ft
Survey type: Post Wireless Design
Coverage: 2.4 GHz and 5GHz
| 5 GHz | 2.4 GHz | |
| Signal Strength | -65 dBm | -65 dBm |
| Secondary signal strength | -68 dBm | -68 dBm |
| Signal-to-noise ratio | 25 dB | 25 dB |
| Date rate | 12 Mbps | 12 Mbps |
Project Map

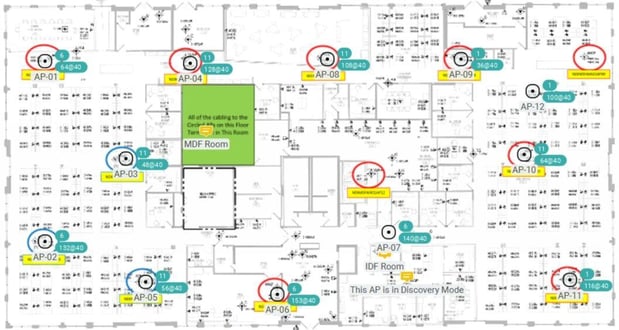

Site Map With AP Placement
Signal Strength on 5GHz

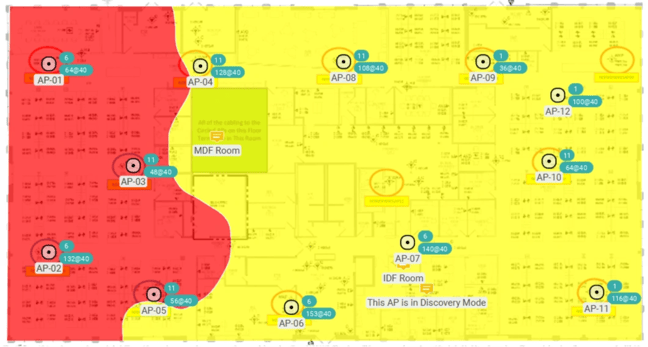

The image below shows the Signal Strength in 5 GHz for the site.
5GHz Signal Map using Ekahau Site Survey
Signal Strength on 2.4GHz

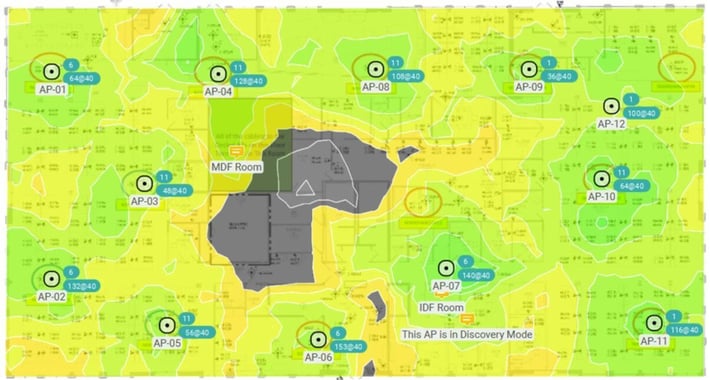

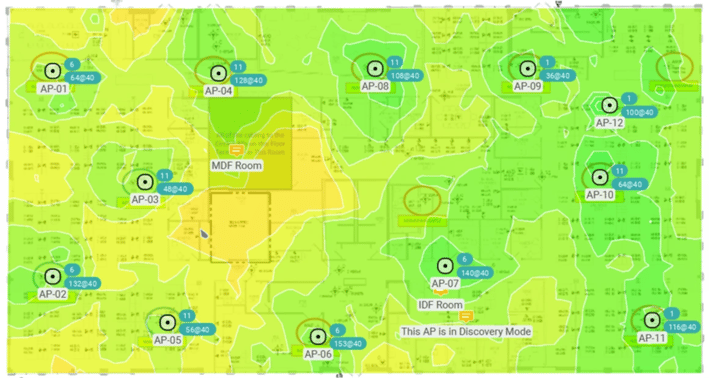

The image below shows the Signal Strength in 2.4 GHz for the site.
2.4GHz Signal Map using Ekahau Site Survey
Access Points exhibiting the signal issue
The images below show the signal issue shown by a few APs onsite. These APs were transmission high power wireless due to configuration or physical issues and inconsistent channel width.

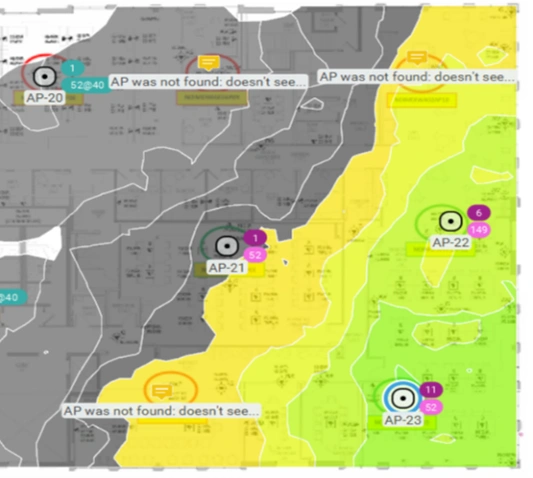

Access points with extremely high power. level

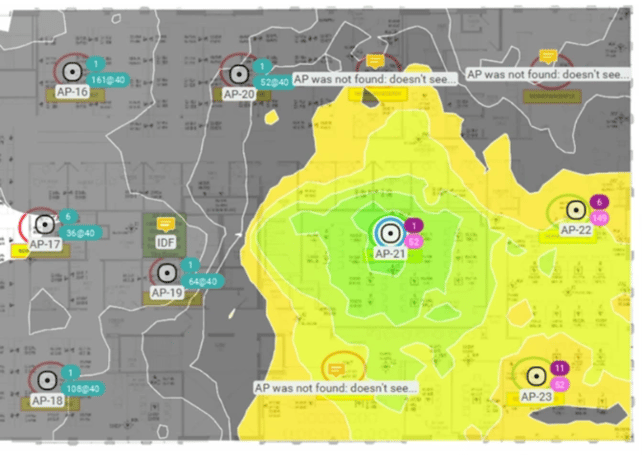

Inconsistent channel width on Access Points in 5GHz
