We developed a WLAN system for a distinguished firm located in Grand Fall, New Brunswick, tailored for their office space. The office measured 1301 square feet with ceilings at a height of 10 feet. The project included a preliminary site survey and design, followed by a post-validation site survey, incorporating ping tests across the entire location. The details of the surveys are below.
Site type: Office
Area: 1301 sq ft
Height: 10 ft
Survey type: Pre-Survey using APoS design and Validation Post Survey of wireless infrastructure
Coverage: 2.4 GHz and 5GHz
AP used for APoS: Cisco 3802i
Antenna: NA
| 5 GHz | 2.4 GHz | |
| Signal Strength | -65 dBm | -65 dBm |
| Secondary signal strength | -68 dBm | -68 dBm |
| Signal-to-noise ratio | 25 dB | 25 dB |
| Data rate | 12 Mbps | 12 Mbps |

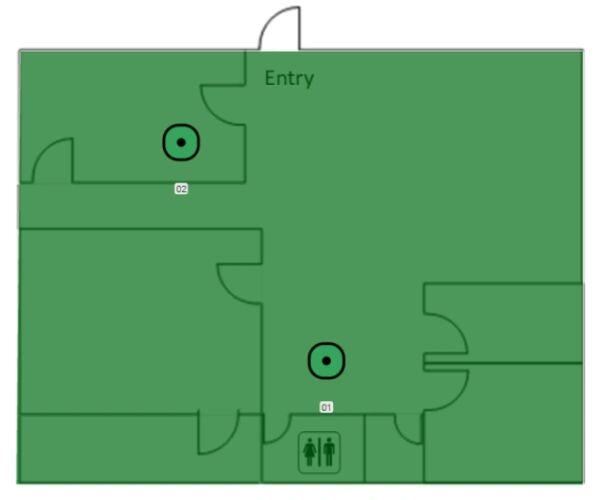

5 GHz Signal Strength
5 GHz Signal Strength

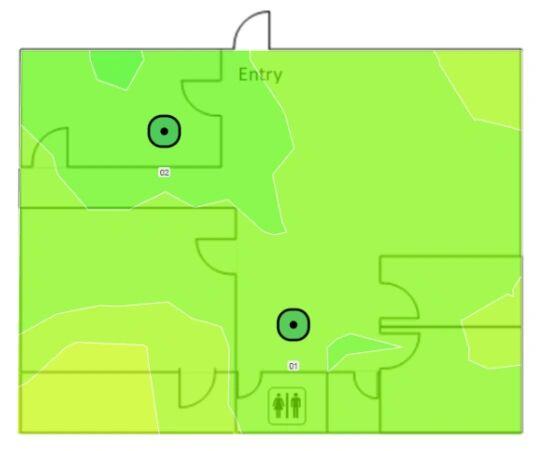

2.4 GHz SNR:
2.4 GHz SNR

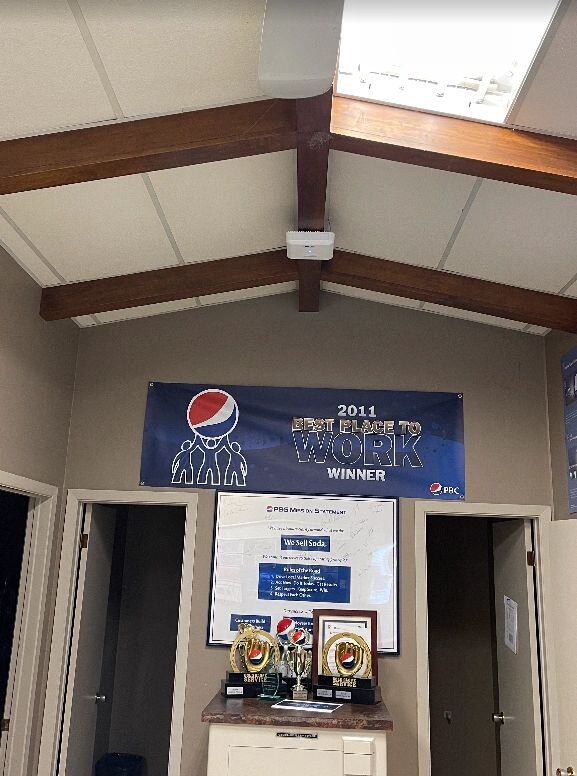

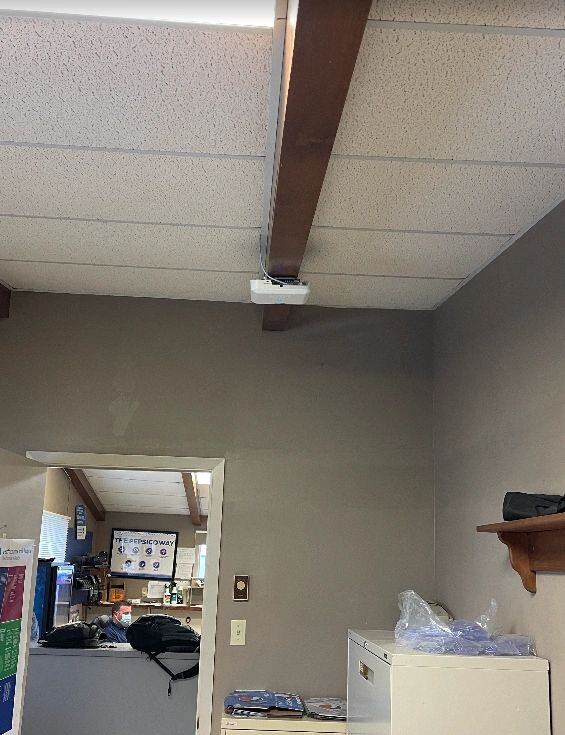

Some photos from the site below:
Image Source: Canva
