The post-deployment wireless site survey aims to provide a precise overview of the Wireless Local Area Networks (WLAN) and the network infrastructure used to implement it. We conducted Signal Mapping analysis for both 2.4 GHz and 5 GHz frequencies using Ekahau Site Survey Pro. The following activities were carried out during the comprehensive Access Point on Stick (APoS) site survey to design and validate the Wireless Network Infrastructure. Here are some of the tasks performed:
-
Performed Signal Strength Indicator and Noise Floor analysis
-
Conducted Signal-to-Noise ratio and Channel or Co-Channel Overlap
-
Checked for Rouge Device RSSI (whether it present)
Coverage Area
Total: 81,477 Sq ft.
Office: 22087 Sq ft.
Warehouse: 60,558 Sq ft.
Recommendations
-
3 new Wireless Access Points should be installed to mitigate coverage holes in the site.

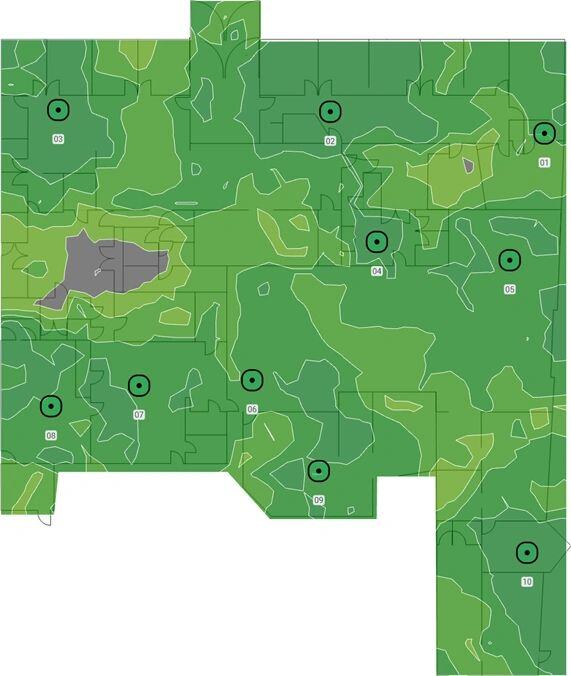

Signal Strength Map (5GHz)

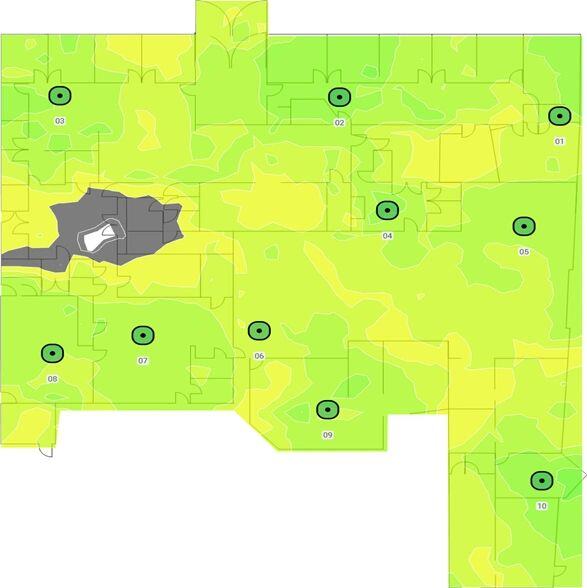

Signal Strength Map (5Ghz)

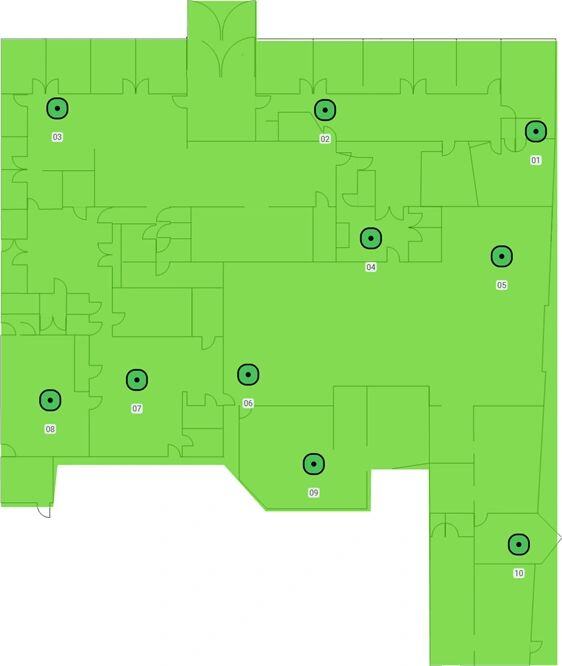

Noise Map (5GHz)
Noise to Signal Ratio SNR (5GHz)
Noise to Signal Ratio SNR (5GHz)
